VCHRGD
VCHRGD Seven Pro, 7.4kW Untethered Type 2 Unit, WiFi, RFID, Bluetooth. VP-007-SUH-W-01
VCHRGD Seven Pro, 7.4kW Untethered Type 2 Unit, WiFi, RFID, Bluetooth. VP-007-SUH-W-01
Couldn't load pickup availability
Description
VCHRGD Seven Pro, 7.4kW 32A@230V, Untethered Type 2 Unit, WiFi, RFID, Bluetooth, 1x Split Core 120A CT
Product Features. VP-007-SUH-W-01
- Charging rate: 7.4kW (32A, Single phase)
- Connector type: Socket (Type 2)
- Cable lock feature
- Smart App controlled
- RCD DD 6mA
- PEN Fault built-in
- OCPP1.6
- Solar compatible
- 1x CT Clamp Included
- Colour: Black
- Authorisation: RFID
- Connectivity: Wifi and Bluetooth
- Weather rating: IP55
- Dimensions: H340xW200xD130mm
- Weight: 4Kg
- CE Certified
- Warranty: 3 Years
- 1x Split Core 120A CT
- OZEV grant approved
Specification
| Model Number: | SEVENPROSUH |
| Brand: | VCHRGD |
| Range: | Seven Pro |
| Product Type: | EV Charger |
| Power Rating: | 7kW |
| App Control: | Yes |
| Connection Type: | Untethered Type 2 Socket |
| Compatibility: | Type 2 Vehicles |
| Charging Mode: | Mode 3 |
| Lockable: | Yes |
| Mounting: | Wall |
| Power Balancing (Load Management): | Yes |
| Wi-Fi: | Yes |
| IP Rating: | IP54 |
| IK Rating: | IK10 |
| Operating Temperature: | -25°C to +50°C |
| Operating Humidity: | Up to 90% RH, Non-Condensing |
| Status Indicator: | LED |
| Rated Supply Voltage: | 230V AC Single Phase |
| Supply Frequency: | 50/60Hz |
| Rated Current: | 32A Max |
| Standby Power Consumption: | <2.5W |
| Protection: | PEN Protection, Under & Over Voltage and Current, 6mA DC Leakage Detection, O-PEN, Earth Leakage Protection |

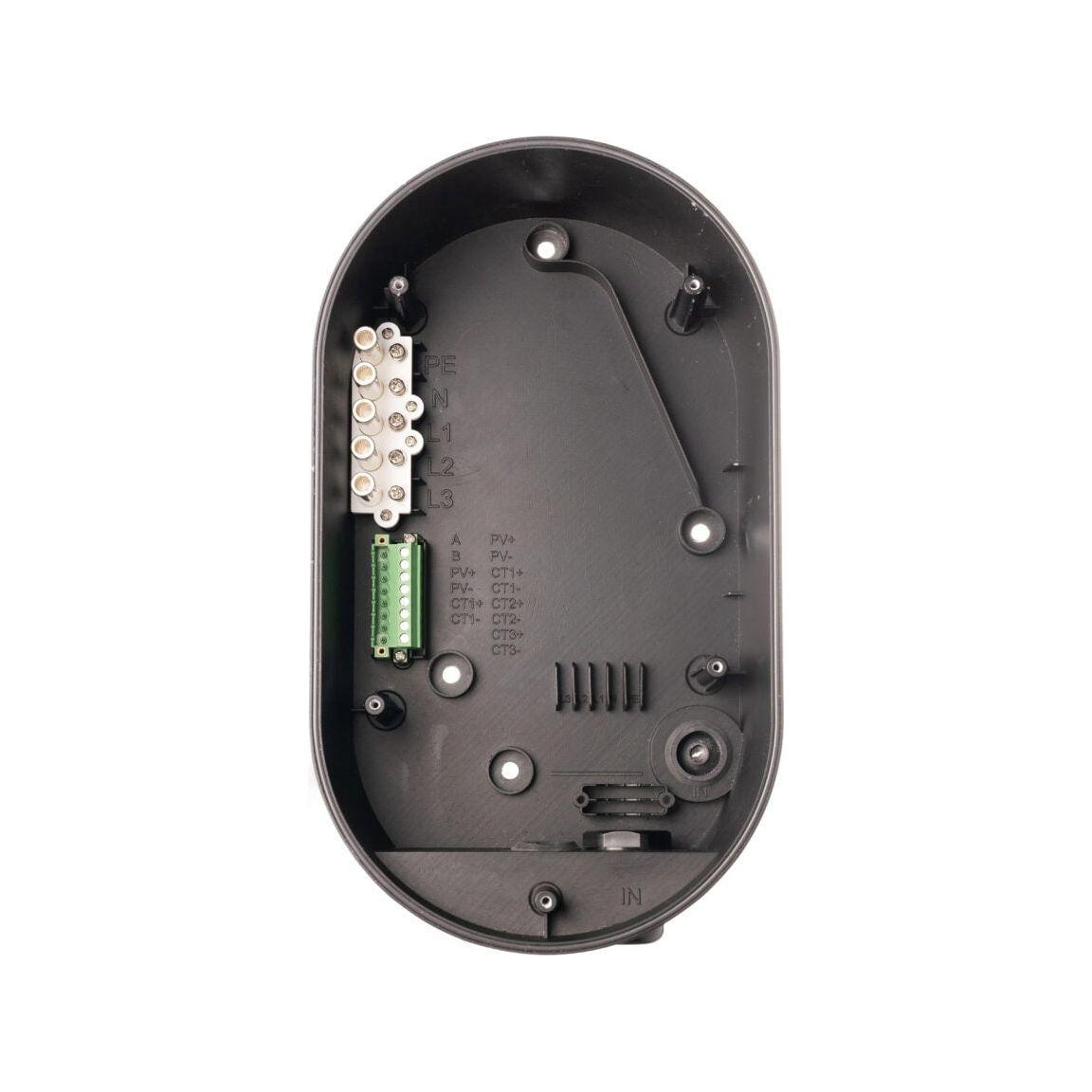

| Supply Connection: | L, N + PE / CT1 + CT2 |
| WiFi: | (IEEE 802.11bgn) @2.4Ghz WPA-2 |
| Colour: | Black |
| Dimensions (HxLxD): | 180mm x 300mm x 90mm |
| Weight: | 3kg |
| Warranty: | 3 Years |
| Certifications: | IEC61851-1:2017, IEC61851-22-2:2018, LVD 2014/35/EU, BS7671:2018, EN61000-3-11, EN61000-2-2, EMCD 2014/30/EU, CE |
